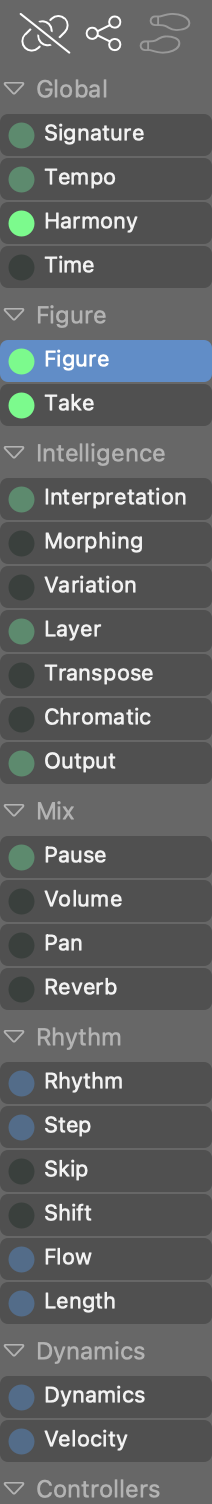

Parameter Block

This scrollable block shows a Parameter Outlet for every available parameter. It is used to select the current parameter that shows up on the Parameter Inspector located to the right of it.

: Activate this link to show the currently selected parameter in all clips of the Track Sheet. If this link is not active, you can edit parameters on the sidebar without losing sight of Figure or Output.
: Default Parameter: Determines whether Figure or Output is showing by default when the link is not active.
: Parameter Trace: Highlights all clips that include the currently selected parameter. You see at a glance where in your arrangement a particular parameter is used.

Edit: Double-click on an outlet to open or close the Phrase Editor or Progression page.

Drag & Drop: Parameter data can be copied or moved to and from other outlets with drag & drop or copy & paste. Parameter data of a different type is converted automatically to fit its destination. Hold down ⌥ Ctrl while you drag in order to copy a parameter.
Cut, Copy, Paste: Use the respective keyboard commands to edit the parameter as a whole.
Paste Alias: Inserts a symbolic link to the parameter you last copied to the clipboard. The alias is read-only and updated automatically whenever the original is changed (Synfire Pro). Also works with a phrase or clip currently on the clipboard.
Delete: Delete parameter data with the Delete key.
Right-Click Menu: Right-click on an outlet to open the Parameter menu with various editing options.
Scrolling: Scroll the block up or down with the mouse wheel to make hidden outlets visible.
Groups: Collapse or expand individual parameter groups to make room or focus on a particular group.
